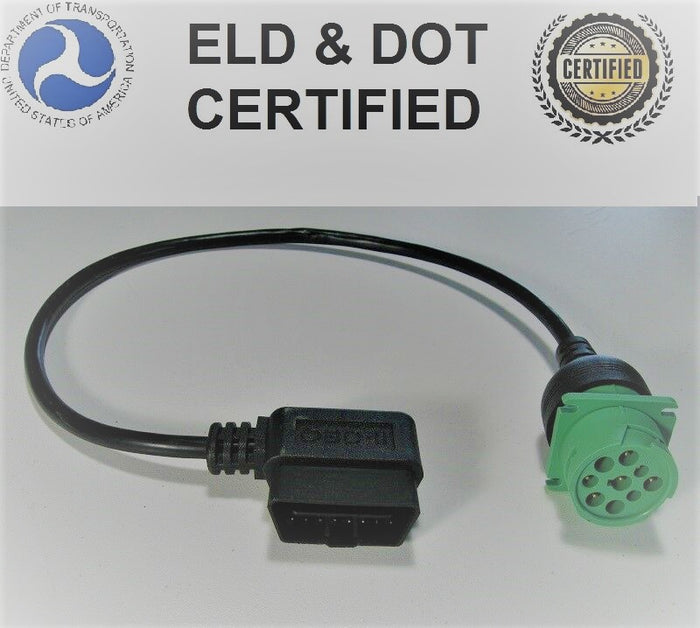

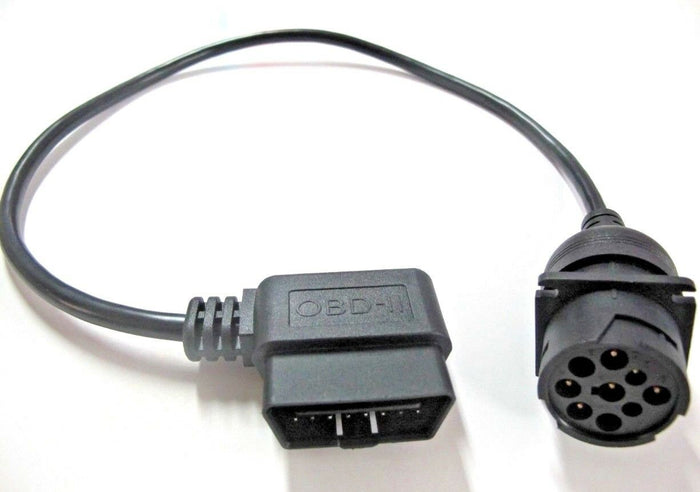

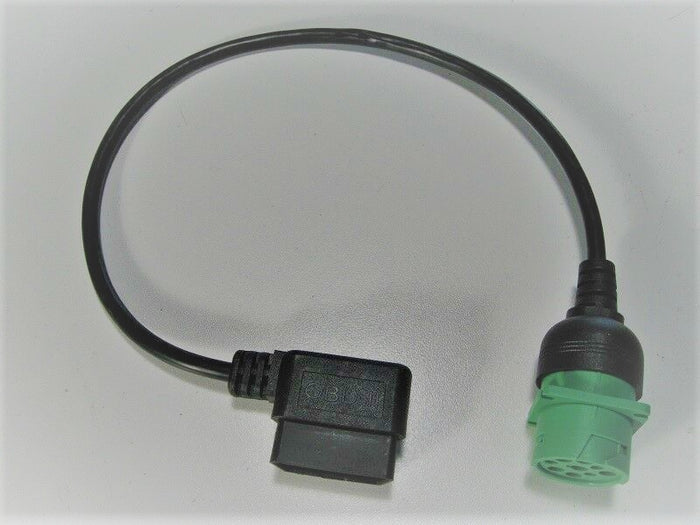

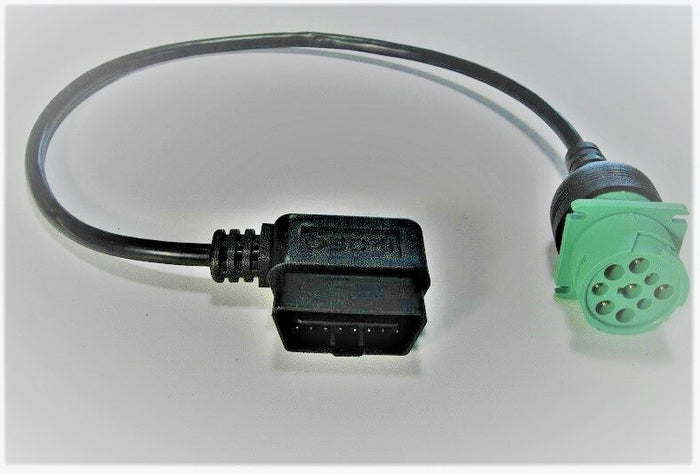

16-PIN OBDII/OBD2 TO 8/9 PIN GREEN OR BLACK ADAPTER CABLE PLUG. USED WITH 2013 OR LATER MODELS VOLVO OR MACK HEAVY TRUCKS.

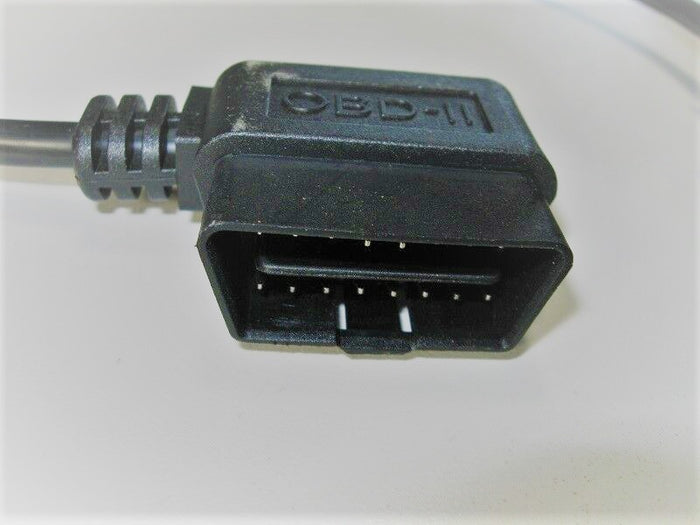

NOTE: YOUR DEVICE OR CABLE THAT YOU ARE PLANNING TO CONNECT MUST HAVE THE ROUND GREEN OR BLACK 8/9 PIN PLUG TO USE THIS CABLE AND YOUR TRUCK MUST HAVE THE 16 PIN OBD2 TYPE IN DASH PORT CONNECTOR

This will only work on class 6,7,8 vehicles with 16 PIN - this WILL NOT work on light duty vehicle

This is designed ONLY for the 16 pin OBD2 type connector found on class 8 VOLVO trucks

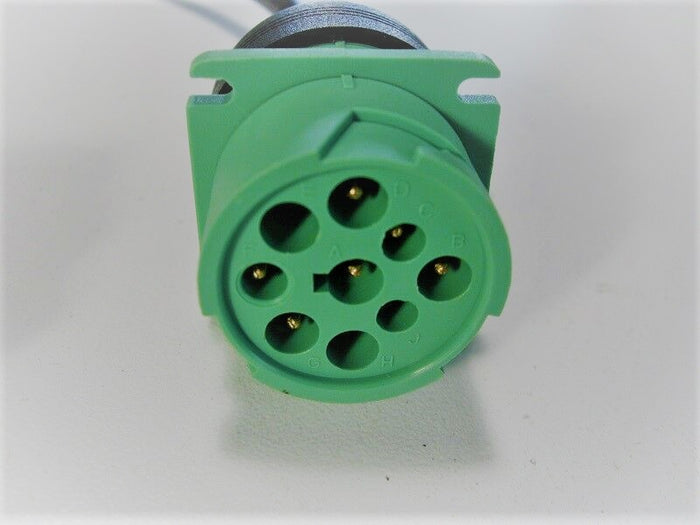

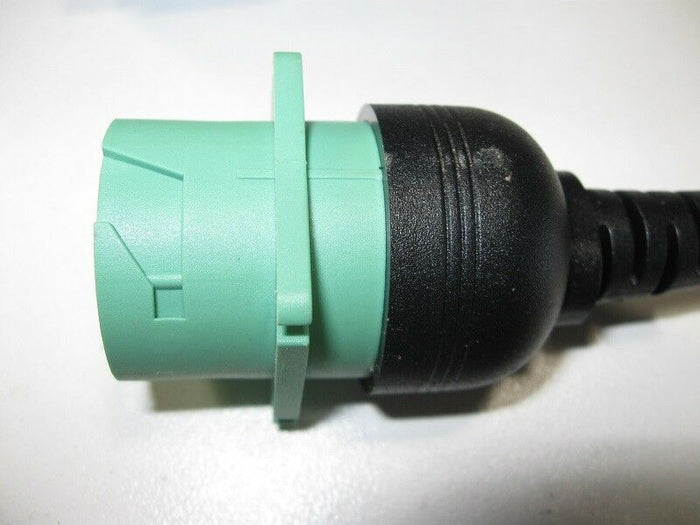

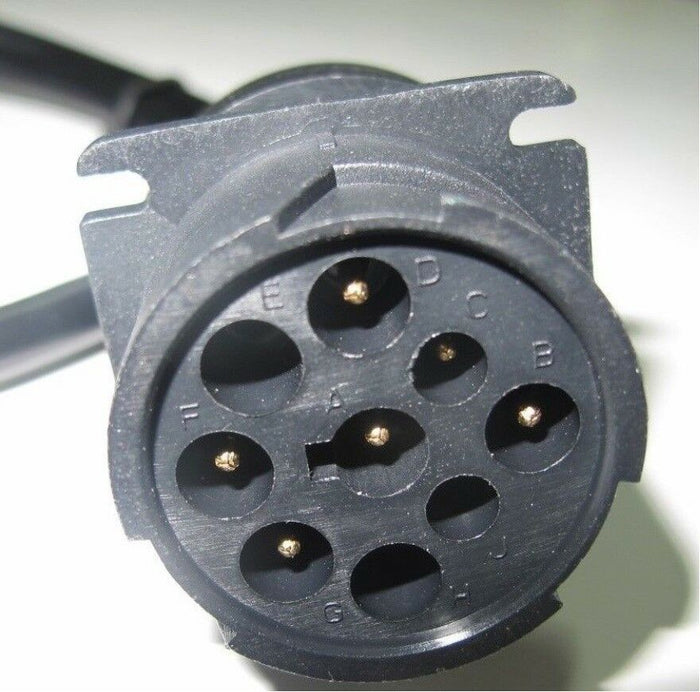

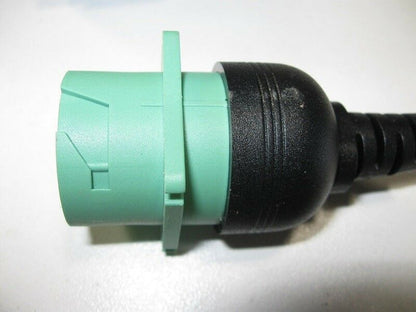

The green or black 9 pin on other end will then accept your Garmin, Rand McNally, ZED or other device that fits the Green type 2 9 pin plug.

Works with Garmin eLog, Rand McNally, Keeptruckin and all ELD device needing to plug into green 9 pin diagnostics port.

NOTE: ONLY pins A, B, C and D are wired on the green 9 pin type 2. These are the ones needed to run your ELD.

PIN SIGNAL

A..............Ground

B...............+12 volt

C...............J1939/CAN High +

D...............J1939/CAN Lo -

F................J708/J1587 High+

G...............J1708/J1587 Lo -

Allows for connection of the 9-Pin GREEN OR 8/9 Pin BLACK Deutsch devices/cables diagnostic port on Heavy trucks to the 16-pin OBD-II type diagnostic connector found in 2013 and later models Volvo/Mack heavy trucks
